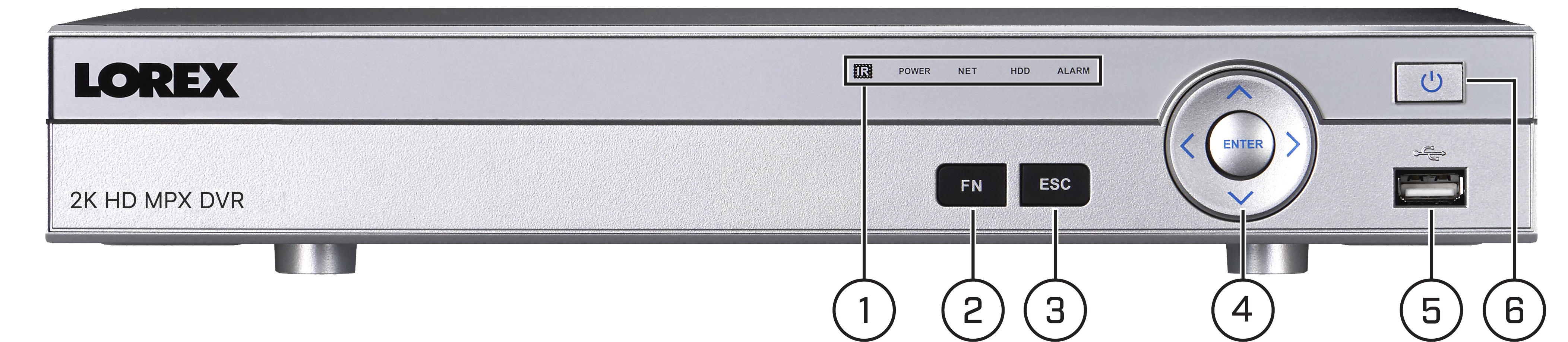

3  Front Panel ( DV800 Series‎ )

Graphic
  1. IR receiver and LED indicators: IR receiver for the remote control. Keep the IR receiver clear from obstructions.
    • POWER: Glows to indicate the system is on.
    • NET: Glows when network is in normal state. Turns off when there is a network error.
    • HDD: Glows to indicate hard drive is in normal state. Turns off when there is a hard drive error.
    • ALARM: Not supported.
  2. FN: Performs special functions in some menus.
  3. ESC: In menus, press to go back / exit menus. In playback, press to return to live view.
  4. Directional buttons:
    • ENTER: From live view, press once to open the System Information screen. In menus, press to confirm menu options.
    • Directional buttons: Press to move cursor in menus. In live view, press up to change split screen layout; press left / right to select channels when single-channel mode is selected.
  5. USB port: Connect a USB mouse (included) or connect a USB flash drive (not included) for data backup or firmware upgrades.
  6. Power button: Press and hold to power off the system (system password required). Press to power the system back on.
