8  Remote Control

Graphic
  1. Power: Press and hold to power off the system. Press to power on.
  2. Playback controls:
    • icon Pause/Play: In live view, press to enter playback mode. Press to play/pause playback.
    • icon Reverse: Press to reverse playback/pause playback.
    • icon Fast: Press to increase playback speed.
    • icon Next: Press to skip to next video.
    • icon Previous: Press to skip to previous video.
    • icon Slow: Press for slow playback.
  3. Esc: In menus, press to go back / exit menus. In playback, press to return to live view.
  4. Directional keys:
    • Enter: Press once to open the System Information screen; press twice to open the Navigation Bar. Press to confirm menu selections.
    • Press icon icon to move the menu cursor.
    • Press icon icon to change menu options.
  5. Mult: Press to switch between full-screen and split-screen layouts.
  6. Number keys:
    • 1~0: In live view, press to open channels in full-screen.
    • In menus, press to input numbers or text input.
    • Shift: Press to change input types.
  7. Add: Configure remote control address. See below for details.
  8. Rec: Press to open manual record menu.
  9. Fn: Press to perform special functions in some menus.

8.1  Setting the Remote Control Address

If you have more than one system, you can set up your remote control to pair with a specific system.
    To set the remote control address:
  1. Right-click and click Main Menu. Enter the system user name (default: admin ) and your new, secure password.
  2. Click icon and then click Setting>General>General.

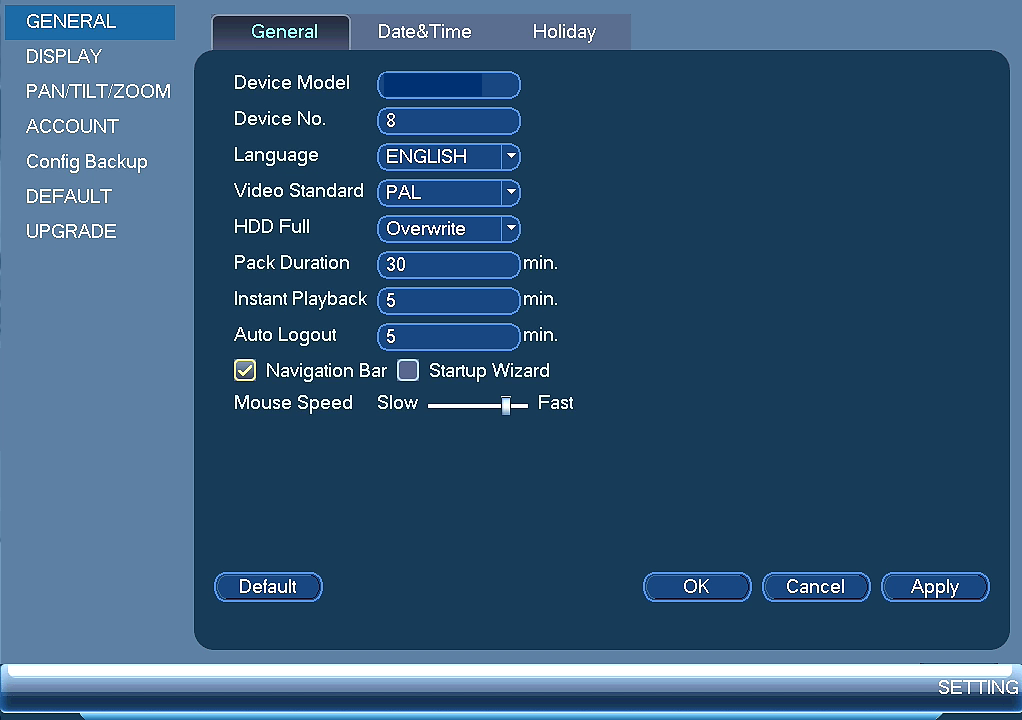

  3. Under Device No., enter the address number you would like to assign to the remote control.
    Graphic
  4. Click OK.
  5. Using the remote control, press Add. Then enter the address number and press Enter.
