4 Basic Setup

4.1 STEP 1: Prepare the Wire-Free‎ cameras and receiver

Before you begin, you will need to prepare the power packs, Wire-Free cameras, and the wireless receiver.

To prepare the cameras and receiver:

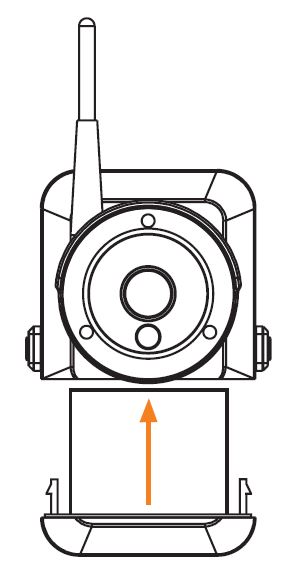

Peel off the PLEASE REMOVE label covering the contacts on each power pack. Insert the charged power packs into each camera base. Push up until the power pack ‘clicks’ firmly into place.

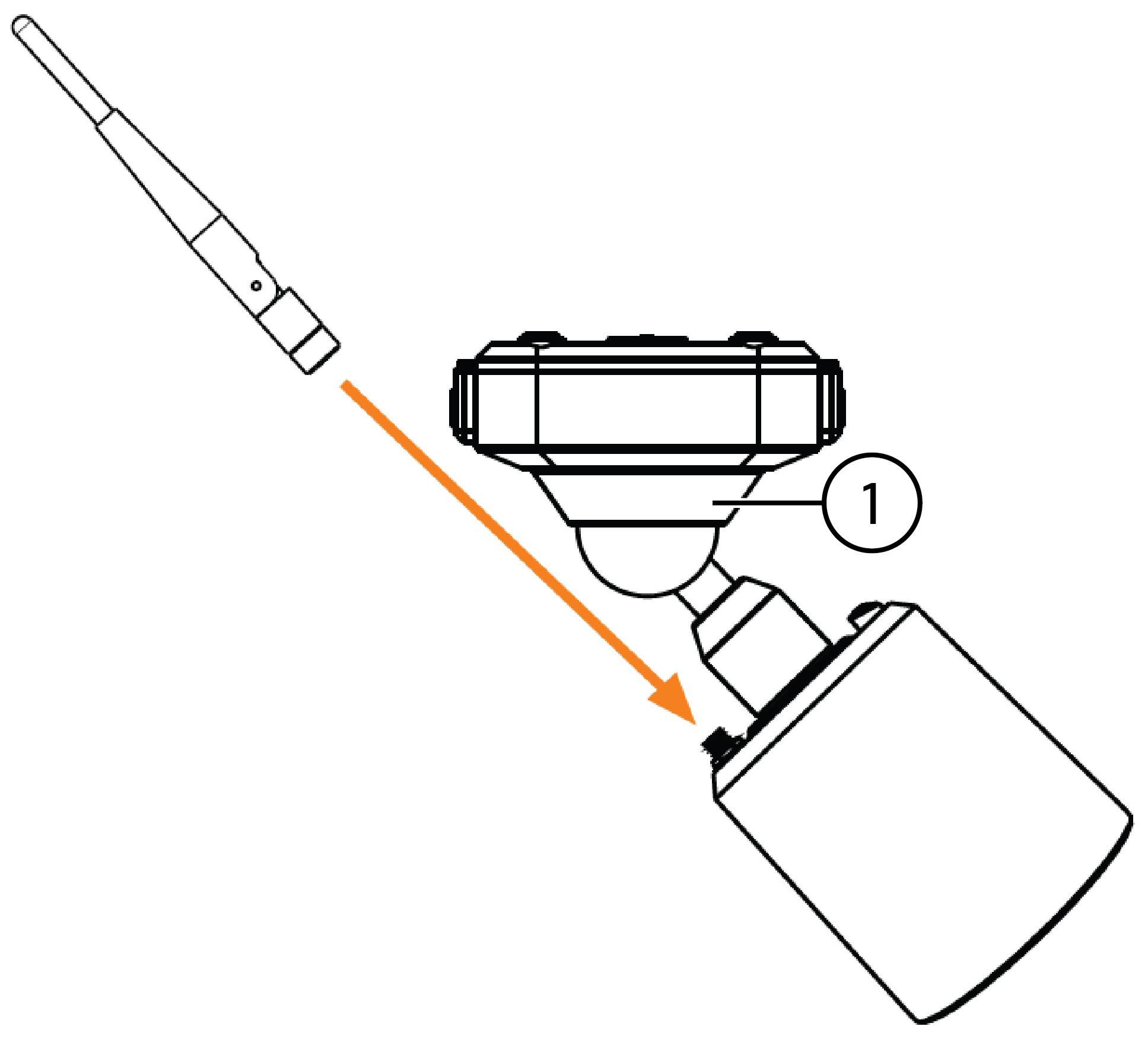

Twist the adjustment ring near the camera base counterclockwise to loosen and reposition each camera as shown to the right. Connect one of the white antennas to each camera.

Adjustment ring

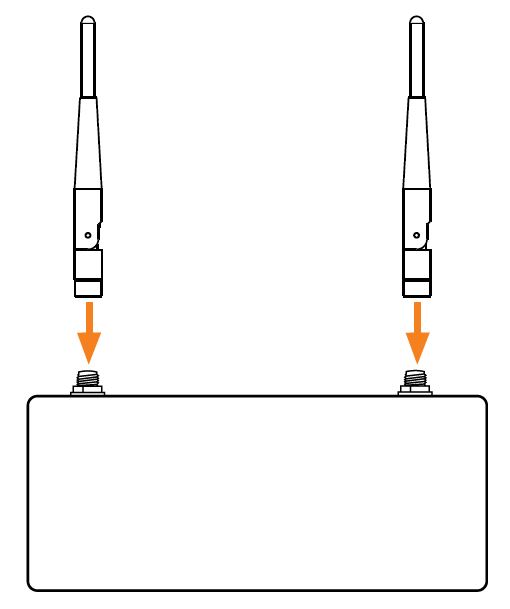

Connect the two black antennas to the wireless receiver.

4.2 STEP 2: Setting Up the DVR‎

Next, you must set up the DVR and connect the wireless receiver.

To set up the DVR:

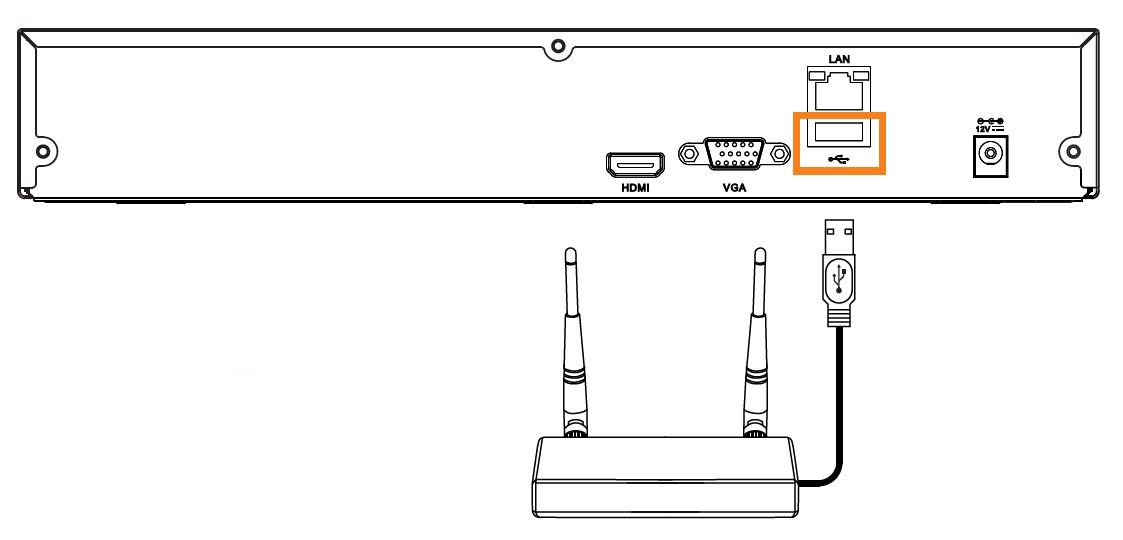

Connect the wireless receiver to the USB port on the back panel of the DVR.

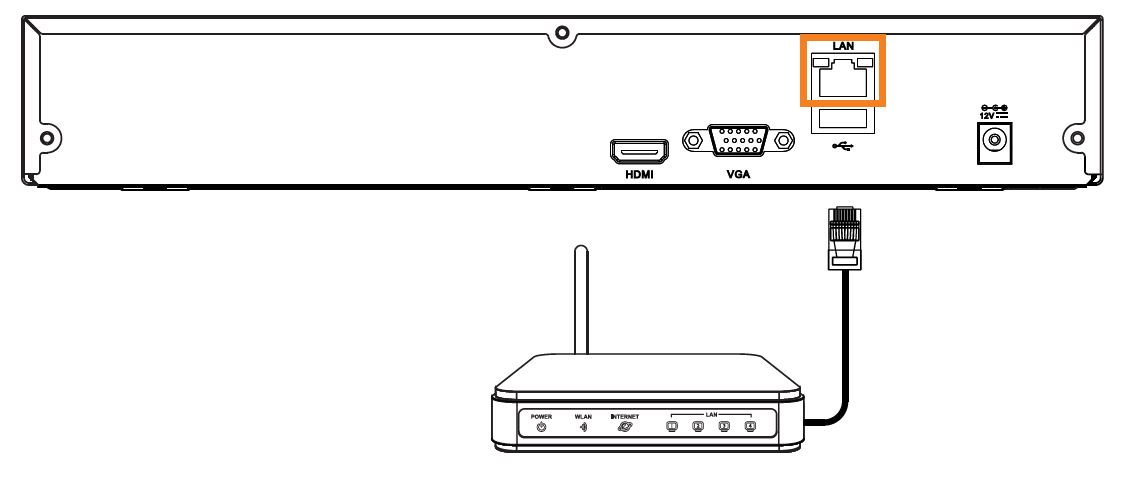

Connect the DVR to your router using the included Ethernet cable.

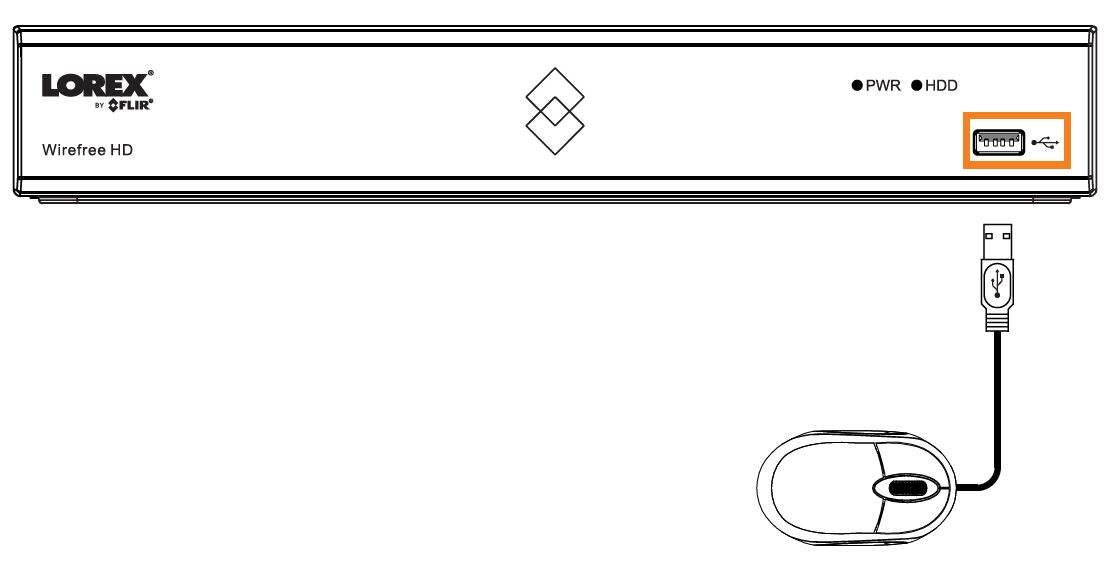

(OPTIONAL) Connect the included mouse to the USB port on the front panel of the DVR.

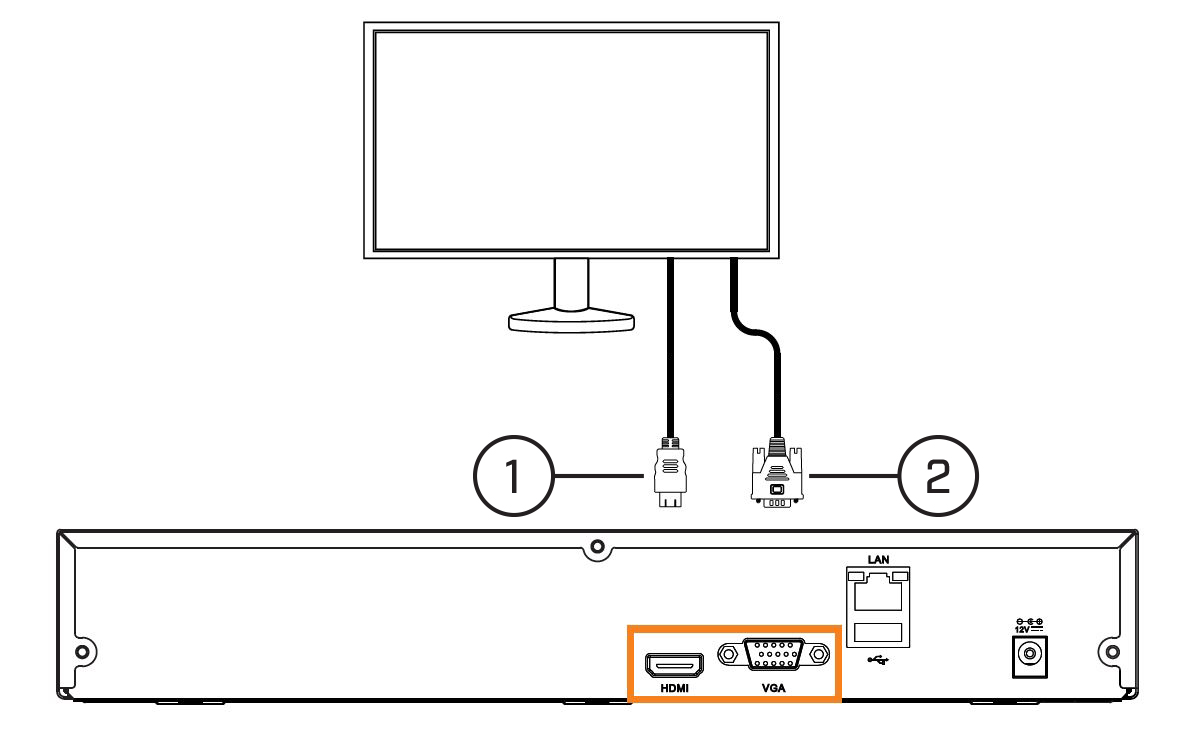

(OPTIONAL) Connect a monitor (not included) to the HDMI or VGA port of the DVR (HDMI cable included; VGA cable not included).

HDMI cable (included)
VGA cable (not included)

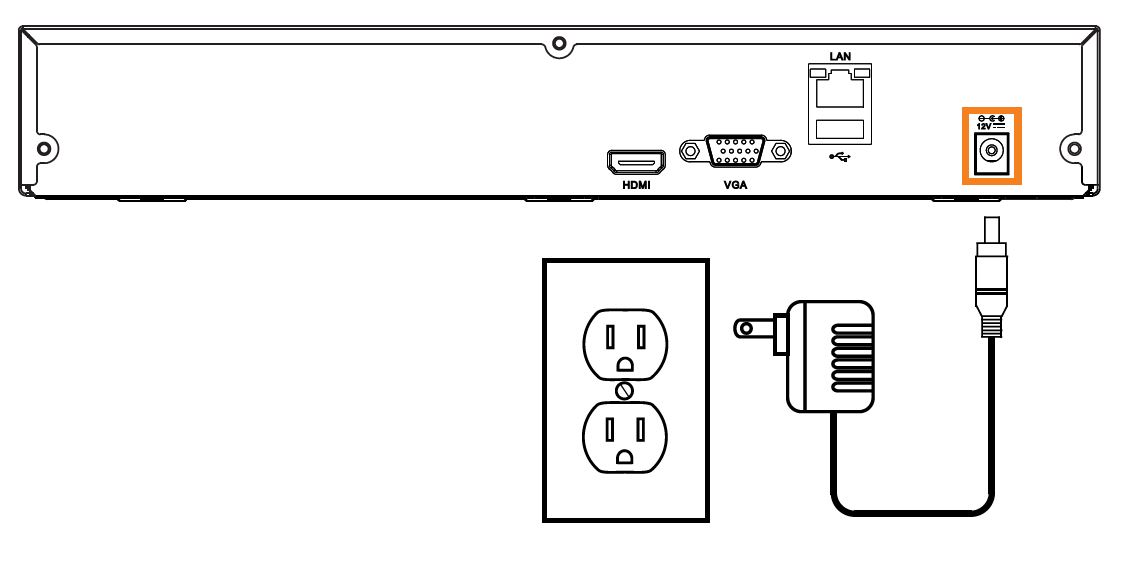

Connect the included power adapter to the DVR. Wait a few minutes for the system to start

4.3 STEP 3: Connecting with Lorex Secure‎

Connect to your system using the free Lorex Secure app for smartphones and tablets (iOS and Android).

To connect with Lorex Secure:

Download and install the free Lorex Secure app from the App Store or Google Play Store.

Tap the Lorex Secure icon ( icon

) to launch the app.

Tap SIGN UP. Enter your email address and password to create a new account.

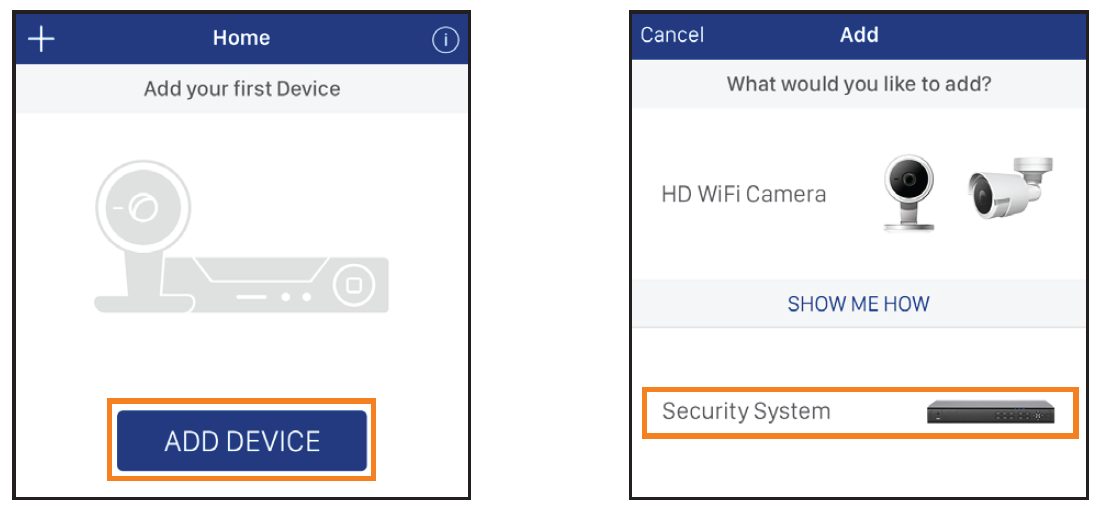

Tap ADD DEVICE, then tap Security System.

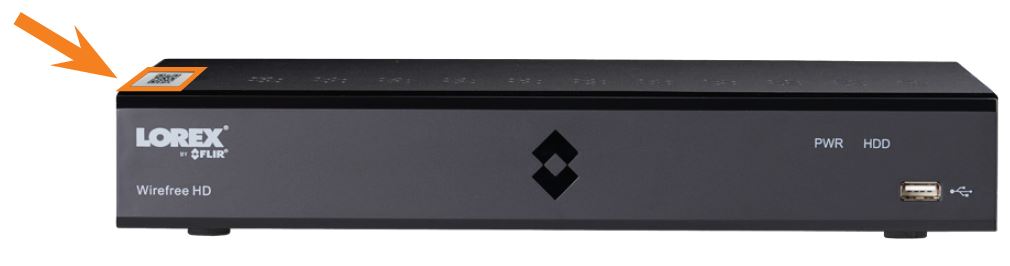

Scan the QR code on the top of your DVR using the camera on your smartphone or tablet.

Enter your DVR’s user name (default: admin) and password (default: 00000000). Tap DONE.

Enter a new, secure 8-15 character password . This password will be used to connect to your system from now on.

Your system will appear on the homescreen of the app. Tap each channel with a camera connected then tap the play button ( icon

) to stream live video.

4.4 STEP 4: Installing Wire-Free‎ Cameras

Prerequisites:

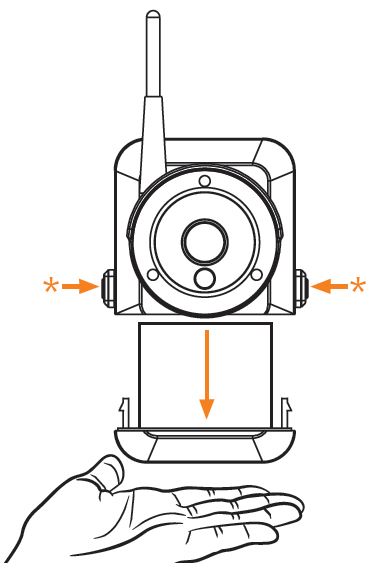

Remove the power pack from each camera by pushing both release buttons*, then pulling down on the power pack.

4.4.1 Installation Tips

The wire-free cameras use a Passive InfraRed (PIR) sensor to ensure video is only recorded when motion is detected. Follow the tips below for more accurate motion detection and to optimize battery life:

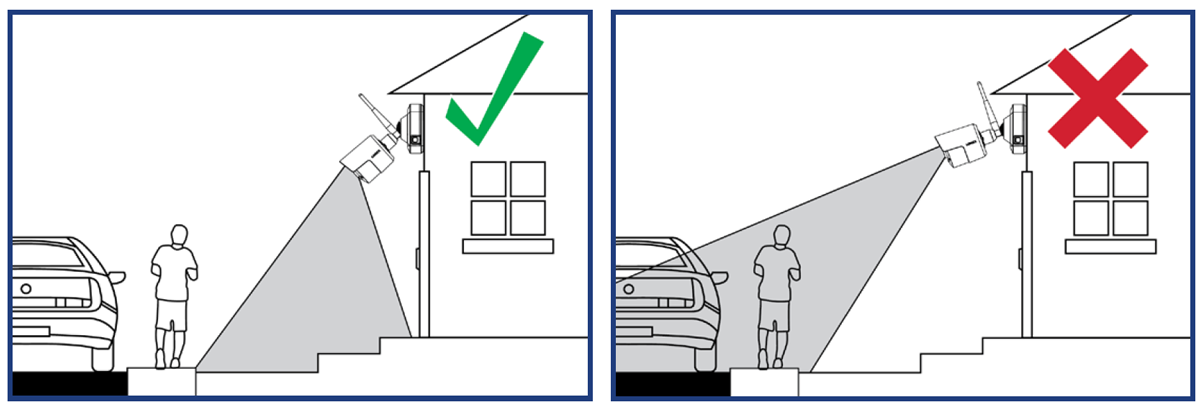

See images below for ideal setup. It is recommended to place your camera at least 7ft (2.1m) above the ground and angle it slightly downward toward the monitoring area, excluding any busy areas (e.g., sidewalks or roadways).
Ensure the camera image is free of obstructions (i.e., tree branches).
Position the camera no more than 20ft (6.1m) away from the area you wish to monitor.
For best performance, position the camera so that objects of interest will move from side-to-side across the camera image, rather than moving towards or away from the camera.
Install the camera within range of the wireless receiver (noted in the camera’s specifications).
This camera is weather resistant for outdoor use (IP65 rated). Installation in a sheltered location is recommended.
Battery life will vary based on temperature, settings and number of events.

4.4.2 Installing the Cameras

Follow the instructions below to secure the cameras. It is recommended that you refer to the "Installation Tips" section above to help you select good mounting locations.

To install your cameras:

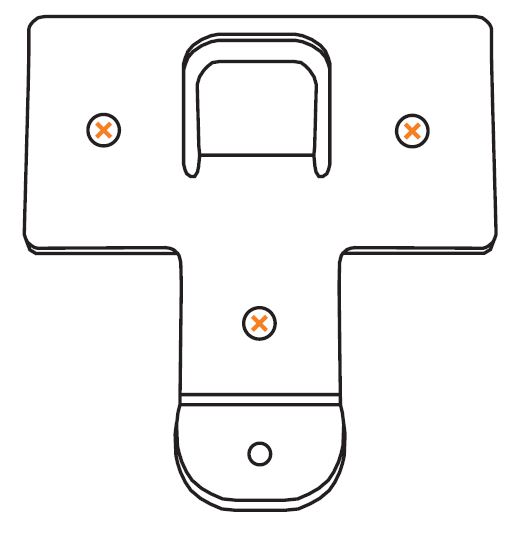

Set the mounting bracket in the desired mounting position. Mark holes through the mounting bracket (shown as orange X’s below).

Drill holes where marked for the mounting screws.

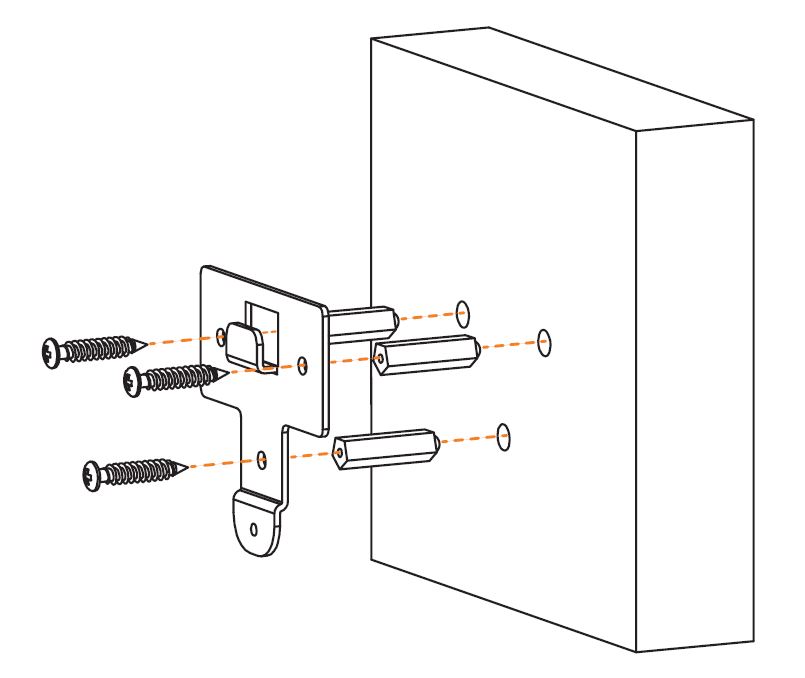

Insert the included mounting screws (×3) into the 3 holes closest to the top of the mounting bracket. Make sure all screws are fastened tightly.

	Note

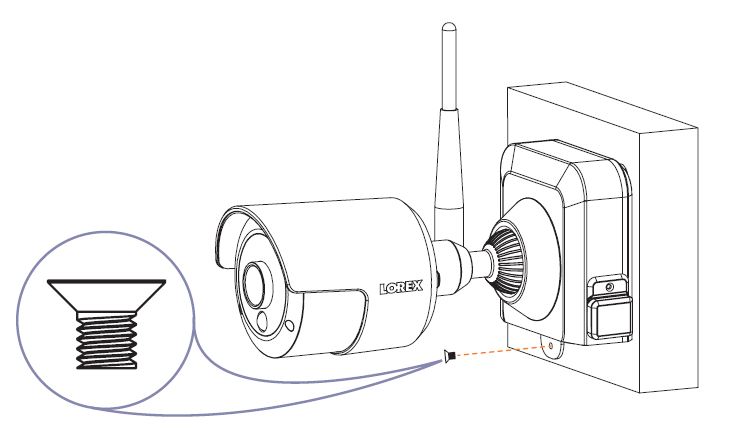

Insert the included drywall anchors if you are mounting the camera onto drywall. The hole at the bottom of the mounting bracket will be used in step 5, once the camera is attached to the mounting plate.

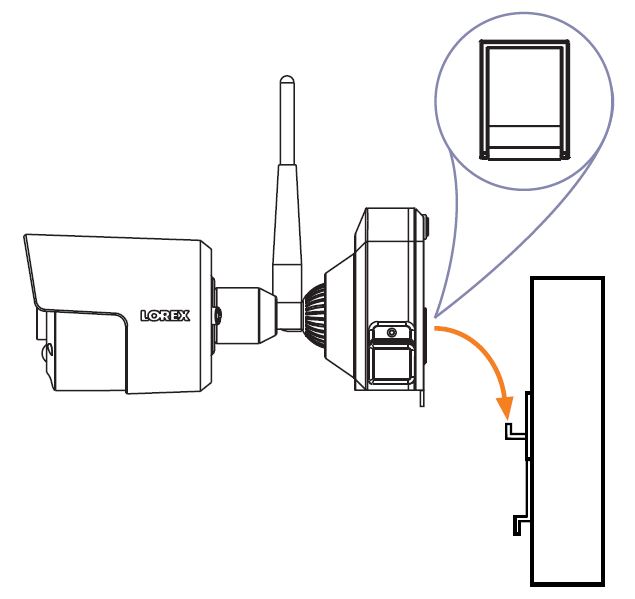

Lower the camera base onto the mounting bracket so the tab in the mounting bracket locks into the slot in the camera base.

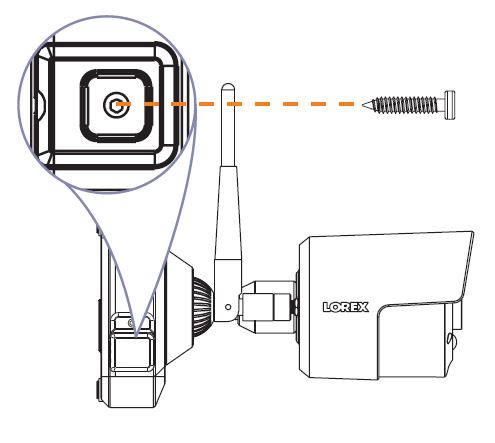

Insert the security screw through the fastener on the camera base to secure the camera to the mounting bracket. Tighten using the included Allen key.

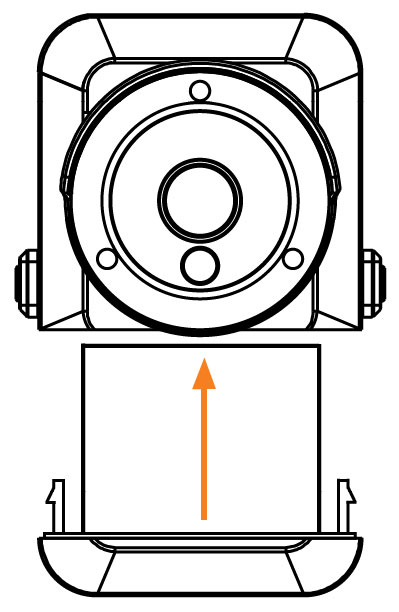

Insert the included power pack into the bottom of the camera base. Push up until the power pack ‘clicks’ into place.

(OPTIONAL) Lift up the rubber seal on the right-side release button. Insert the locking screw and tighten using the included Allen key to secure the power pack in place.

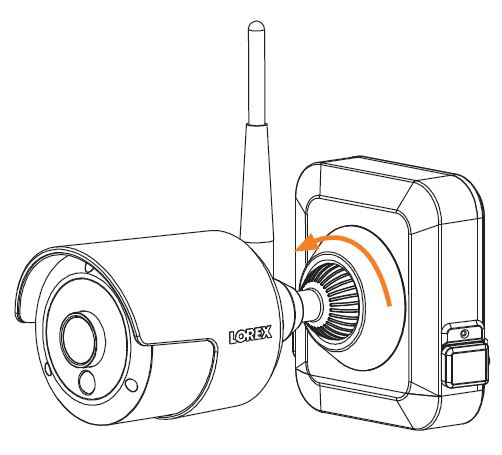

Twist the adjustment ring near the camera base counterclockwise to loosen and reposition the camera. Hold the camera in the desired angle and tighten the adjustment ring completely to secure the camera in place.

4.5 Quick Access to System Information

To quickly open a window with system information:

Click on the DVR’s Taskbar.
OR
Press the button on the included remote control.

	Note
Power packs come fully charged with no need for initial charging.

	Note
The receiver includes double-sided tape and mounting screws for optional wall mounting for improved line-of-sight with cameras.

	Note
The optional steps above are only required in order to use the DVR interface for system control. You can still control the system using the Lorex Secure app without connecting a mouse or monitor to the DVR.

	Note
If this is not the first device on your account, log in using your email address and password, then tap LOG IN. Tap and then Security System. Proceed to step 5.

	Note
If you do not see video from one or more cameras, ensure you have removed the PLEASE REMOVE label from the power pack. If the issue persists, see Troubleshooting .

	CAUTION
Place your hand underneath the power pack when removing to prevent it from falling.

	Note
You will need to loosen the locking screw to remove the power pack in the future.

	Note
The QR code shown in the System Info screen can be scanned during mobile setup to enter the system’s Device ID.
