4 Rear Panel ( DV800 Series‎ )

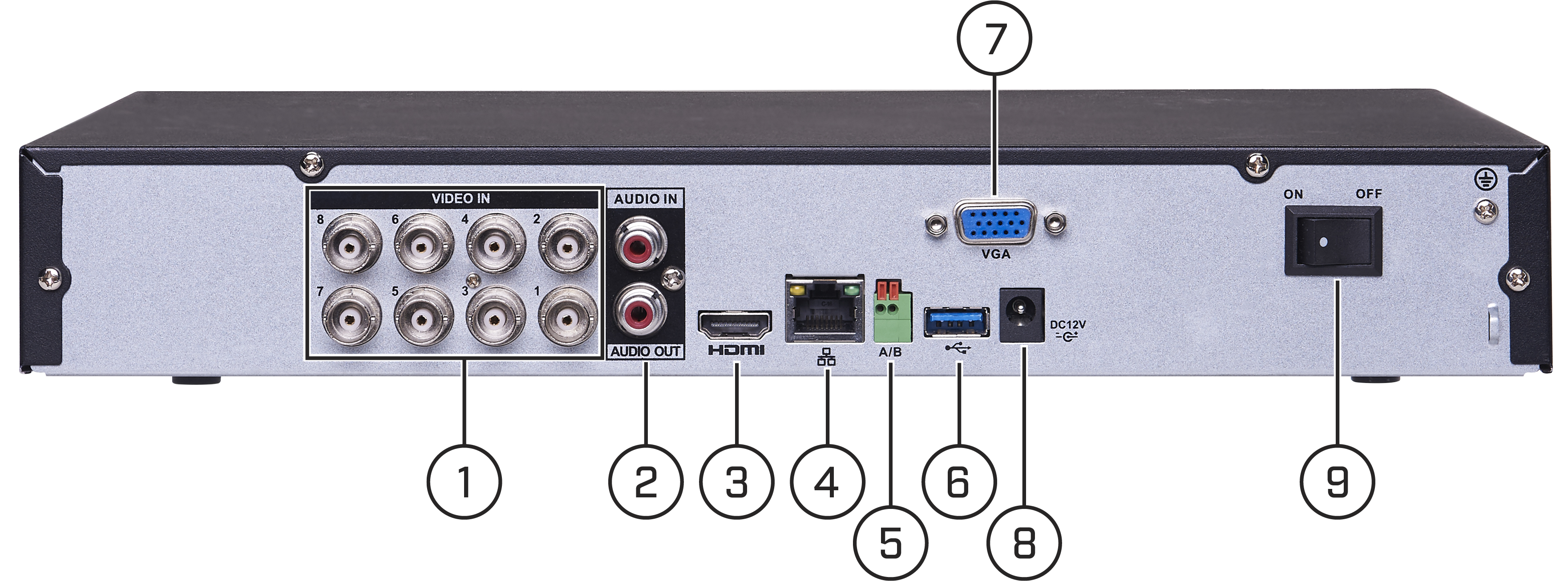

Video input: Connect Lorex MPX or standard analog cameras to the system.

Audio IN/Audio OUT: RCA input and output for 1–channel audio recording.

HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.

LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.

A/B: Connect RS485 cables.

USB port(s): Connect a USB mouse (included) or USB flash drive (not included) for data backup or firmware updates.

VGA: Connect a VGA monitor (not included) to view the system interface.

DC12V: Connect the included power adapter.

ON/OFF switch: Turns the DVR on or off.

	Note
DVR back panel shown below is for illustration purposes only. Your DVR model may appear slightly different, with the same ports in different positions on the back panel.

	Note
For full details on connecting PTZ cameras, see Connecting a PTZ Camera ( DV800 Series‎ ) for details.
